Elecro Swimming Pool Heaters

Swimming Pool Covers | Heat Exchangers,Heaters Pumps & Filters |  Elecro Swimming Pool Heaters

Elecro Stainless Steel HeatersElecro Stainless Steel Heaters Ref: 034000000
The latest Elecro pool heaters have evolved from the 800 Series. These units come fully equipped and pre-wired including a super sensitive flow switch, that allows safe coupling to Intex, Fast Set type splasher pools. They also come complete with a control thermostat, safety thermostat and integral contactor relay.

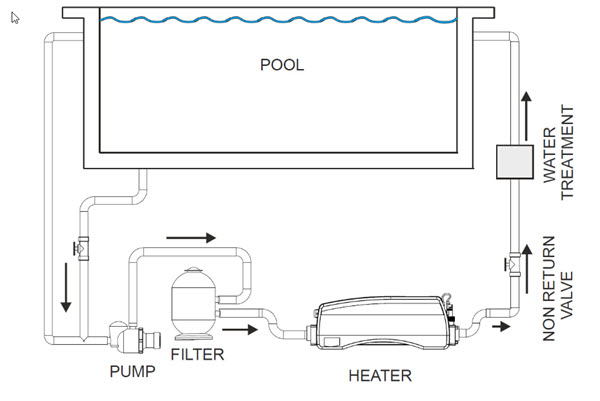

The heaters are very easy to install, requiring only final connection to a mandatory separate RCD.No pump interterlock is required. All heaters come fitted with 1½" BSP female threaded adapters for easy connection to rigid pipework. Heater sizes 2-kW through to 12-kW are also supplied with hose tail adapters for connection to flexible pipework.

Key Features
*Thermostat You Control
*Separate Safety Thermostat
*Integral Contactor Relay
*Reversible Flow Switch, Allowing Water Input From Either Direction
* 3 phase available please contact John on 0845 680 0738 for costs
how to pick the heater size
more information >>

Heater Size



Elecro timerElecro timer Ref: 034000007
It makes sense to have a timer built into the unit at a modest cost
Price: £35.25 (Including VAT at 17.5%)



Elecro Titanium Swimming Pool HeaterElecro Titanium Swimming Pool Heater Ref: 034001000
Suitable For In Ground, Above Ground & Splasher Pools Including Salt Water Pools
The Elecro TiTANIUM swimming pool heater is the latest addition to our growing product range. As with the stainless steel model all units come fully equipped with a highly sensitive flow switch, control thermostat, high limiting safety thermostat & integral contactor / relay. The main difference is that the tank & element(s) are now being produced in Pure Titanium.

The decision was made to produce in Titanium for a number of reasons, not only for it's super strength but also for it's outstanding corrosion & erosion resistance properties. The reason that Titanium is so tough in comparison to all other metals is that it is completely non-reactive, this means that the Titanium heater is also suitable for heating acids or virtually any liquids. The Titanium heaters are as easy to install as the stainless steel model, all heaters are fitted with 1½'' BSP female threaded adapters for connection to rigid pipework, heater sizes 2-kW through to 12-kW are also supplied with hosetail adapters for connecting to flexible pipework.

Key Features

Pure Titanium Flow Tube & Heating Element(s)
Thermostat You Control
Seperate Safety Thermostat
Integral Contactor / Relay
Reversible Flow Switch - Allowing water input from either direction

more information >>

Titanium Heater Size

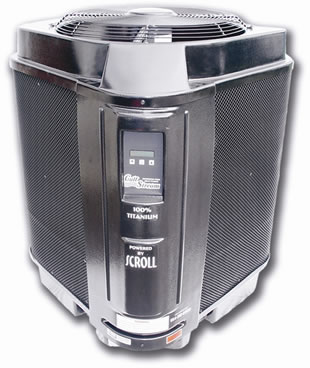

Elecro Heat Pump  65 Btu
Elecro Heat Pump 65 Btu Ref: ehp40
Elecro's Titanium Heat Exchanger are one of the most efficient and reliable swimming pool heat pumps available. Built to the highest standards.
How they work:-

Step 1 : The evaporator absorbs heat from the ambient air drawn through the evaporator coil by the fan (1a). The heat is transferred to the cold refrigerant flowing through the evaporator coil and the residual cooler air generated by the process is then discharged out of the heat pump by the fan (1b).


Step 2 : The compressor then receives the warmed refrigerant and by the compression action, heats it, elevating substantially the pressure inside the system. The now hot refrigerant converted to gas is then pumped to the condenser.



Step 3 : The heat from the hot refrigerant flowing inside the condenser is then transferred to the pool water, touching the exterior of the condenser coil, when flowing through the heat exchanger. In the process, the refrigerant temperature drops and the water temperature increases.



Step 4 : The now warm refrigerant flows through the pressure control regulator device (capillaries or expansion valve) greatly reducing the pressure inside the system and chilling the refrigerant to a cool state again. The refrigerant is then ready to restart the process and flow into the evaporator coil to collect the heat again.

Superior Efficiency, Low Running Costs
A swimming pool heat pump only requires energy to operate a compressor and a fan motor, requiring minimum power consumption in the process. Elecro FocusTemp heat pumps can produce up to 5 times more heat energy than the electrical power it consumes. This means that for every 1-kW of electricity consumed, the heat pump can produce up to 5-kW of heat output into the pool water.

Power output 19 Kw
Power Consumtion 3.4 Kw
Amps 27Amps
Dimensions 82 x82 x87
Price: £3,525.00 (Including VAT at 17.5%)
